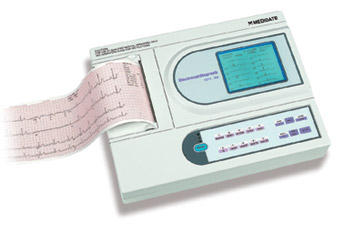

1211-DG

- Compact laptop design
- Graphic LCD monitor
- Built-in high resolution printer
- Rechargeable battery
- Communication with PC



Measurement and average complexes
1211-DG measuring program determines precisely the beginning and end points of P waves, QRS complexes and T waves based on noise reduced average complexes. Electrical axis as well as exact time and amplitude measurement are provided.

ECG Interpretation
1211-DG has the clinically proven interpretation program of diagnostic information with regard to rhyth, electrical axis, QRS morphology changes, conduction defects, hypertrophy characteristics, ST-T changes, myocardial information, etc. with an interpretation time of less than 6 seconds.

Communication with PC
-Via the serial interface, the electrocardiograth can be directly connected to PC.
-Saving and transmitting of measured data
-Efficient patient information management



Leads

-Up to 12 simultaneous leads

 Dimensions

-351 x 268.5 x 63mm, App. 2.7kg

 Recording ECG Leads

-I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6

 Sensitivities

-5, 10, 20 mm/mV

 Paper Speed

-10, 25, 50 mm/mV

 Digital Filter

-0.5 Hz Baseline wandering rejection
-40 Hz / 100 Hz Muscle tremor filter
-Suppression of superimposed 50/60Hz sinusoidal interferences

 Liquid Crystal Display

-liquid crystal display for graphic and alphanumeric representation
-Resolution : 320 x 240 dot

 Printing Process

-High-resolution thermal printer
-200 dpi (Amplitude axis)
-400 dpi (Time axis)

 Patient Input

-Fully floating and isolated, defiberillation protected

 Patient Leakage Current

-<10㎂

 ECG Amplifier

-Sampling frequency : 600Hz
-Digital resolution : 5㎶
-Dynamic range : ㎷
-Frequency response : 0.05 to 100 Hz
-CMRR : > 100dB
-Input impedance : > 50㏁
-Simultaneous recording of all 9 active electrode signals(-12 leads)

 Safety Standard

-CF according to IEC

 Protection Class

-Class I according to IEC

 Power Supply
Requirements

-95-240VAC, 50/60Hz, stand alone operation with built-in rechargeable battery

 Power Consumption

-12 to 40 Watts (max, 50W)

 Standard Accessories

-10 leads patient cable, electrode set
-Power and ground cable
-Recording paper and operation manual
