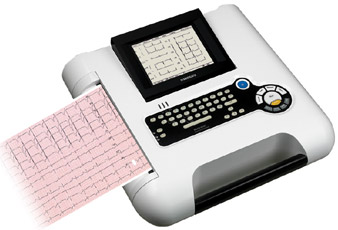

MeCA 812i
|
|
|
|
|
|
|
|
|
-
Simultaneous
12
leads
ECG
-
ECG
Interpretation
-
Alphanumeric
keyboard
-
Graphic
LCD
(320
x
240)
-
Real-time
waveform
display
-
Z-fold
paper
(A4
Size)
-
Rechargeable
battery
-
Storage
memory
for
50ECGs
-
PC
communication
with
RS232,
LAN
-
For
transfer
to
data
directly
to
a
PC
with
-
CardioPro
(software)
|
|
|
|
|
|
|
|
|
|
Model
|
MeCA812i
|
|
Lead
|
Standard
12
leads
|
|
Recording
Channel
|
3,
6,
12
Ch
|
|
Input
Impedance
|
≥
50㏁
|
|
Sensitivity
|
5,
10,
20mm/mV
|
|
Paper
Speed
|
5,
10,
25,
50mm/s
|
|
Filter
|
AC
:
50/60Hz
-Low
pass
:
40,
100,
150Hz
-Muscle
filter
:
40Hz
-Baseline
drift
:
0.5Hz
|
|
DC
Offset
Voltage
|
±300mV
|
|
CMRR
|
100dB
|
|
Frequency
response
|
0.05
-
150Hz
|
|
Recording
Paper
|
Z-fold/8.5
inch
(A4
Size)
|
|
LCD
Display
|
Graphic
LCD
320
x
240
dot
|
|
Sampling
Rate
|
1000Hz
|
|
A/D
Conversion
|
16bit
|
|
Patient
Leakage
Current
|
<
10㎶
|
|
Communication
|
PC
communication
with
RS232,
USB
interface
and
LAN
|
|
ECG
Storage
|
Storage
of
up
to
50ECGs
(storage
of
up
to
500ECGs
typical
for
the
optional
SD
card)
|
|
Power
|
AC
:
100-240V,
50/60Hz
|
|
Battery
|
Built
in
rechargeable
battry(14.4V,
NI-MH,
Optional)
|
|
Safety
Level
|
Class
I,
Type
CF
|
|
Dimension
|
385
x
368
x
90
mm
|
|
Weight
|
4.8kg
(including
battry)
|
|
|
|
|
|
|
|
|
